EdgePro 100

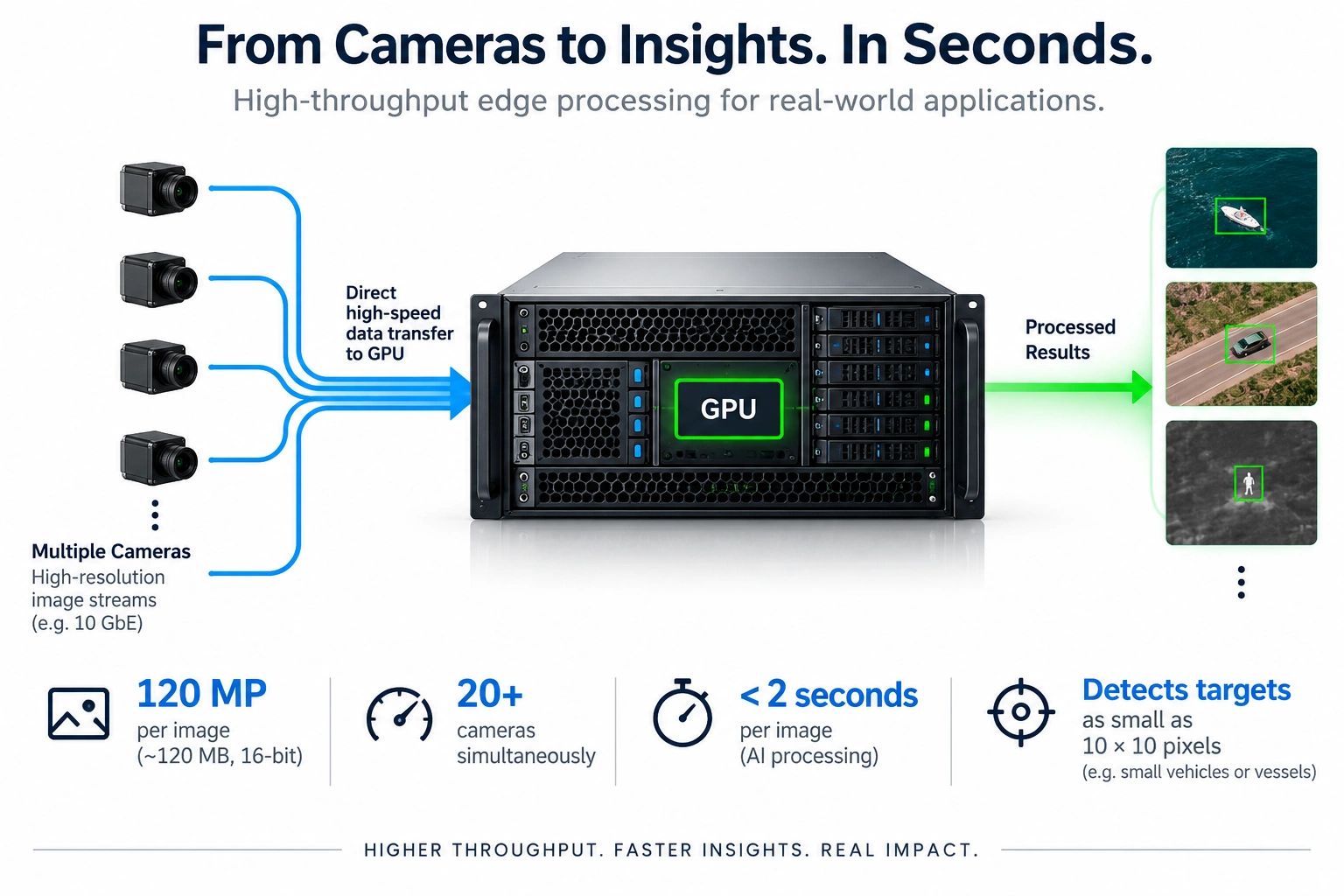

Edge Pro 100 is a state-of-the-art edge processing system engineered to acquire and analyze high-resolution image streams from multiple cameras simultaneously. Featuring ultra-high-speed data transfer directly to GPU memory and advanced AI acceleration, it enables the processing of 100+ megapixel images in seconds, detecting and tracking even the smallest targets with exceptional efficiency and minimal latency.
Typical Applications
Real-Time AI Image Processing · Multi-Camera Sensor Fusion · Automated Target Detection & Tracking · Edge-Based ISR Analytics · Space Domain Awareness · High-Throughput Scientific Imaging · Autonomous Surveillance Systems · Low-Latency Computer Vision
Area 61
Area 61 is a compact 61 MP full-frame imaging camera designed for high-resolution aerial mapping, inspection and surveillance.
Typical Applications
Drone Mapping · ISR · Long-Range Surveillance · Infrastructure Inspection · Photogrammetry · Space Domain Awareness · Scientific Imaging · Aerial Survey
Imaging Performance
61 MP Full-Frame Sony IMX455
For high-detail aerial imaging, mapping, inspection and long-range observation.
3.76 µm Pixel Size
Fine spatial sampling for high ground resolution and angular detail.
16-bit Imaging
Preserves detail across bright and dark areas for demanding imaging applications.
High-Resolution ROI Support
Region-of-interest acquisition for faster processing and target tracking.
Optics & Camera Control
Canon EF Lens Support
Compatible with a broad range of Canon EF prime and zoom lenses.
Electronic control of lens focus and aperture directly from the camera system.
Interchangeable Optics
Quickly adapt field of view and ground resolution to different missions simply by changing the lens.
Remote Camera Control
Remote control of exposure and lens settings from the host system.
Designed for integration with onboard computers.
Gimbal Integration
Designed for integration with Gremsy gimbals and other UAV payload systems.
UAV Integration & Sync
Hardware Trigger Support
Precise image acquisition and synchronisation with external systems.
Accurate Image Timestamping
Supports correlation of imagery with GNSS/INS, aircraft position and attitude data.
Weight & Dimensions
Approx. 800 g with 50 mm lens
Camera body: 110 × 90 × 95 mm (without lens)
